Day 23 of Learning 3d 🎮 Filling up the street and adding shadows

Learning 3d

Today is day 23 of my challenge to learning 3d in a month. I want to create a Tokyo street scene in 3d. I’ve never done any real 3d before. Yesterday, I added rain, blinking lights, sound and built a mini VR web app for the scene.

Here’s what I’m trying to make in 3d:

makashiwakui_header

Adding shadows

I started out today accidentally finding out about shadows. I knew my scene was missing them but I wasn’t sure how to get them. I figured they would show up automatically if a light would be behind an object. But they don’t. You actually have to specifically let a light project a shadow with something called a shadow map:

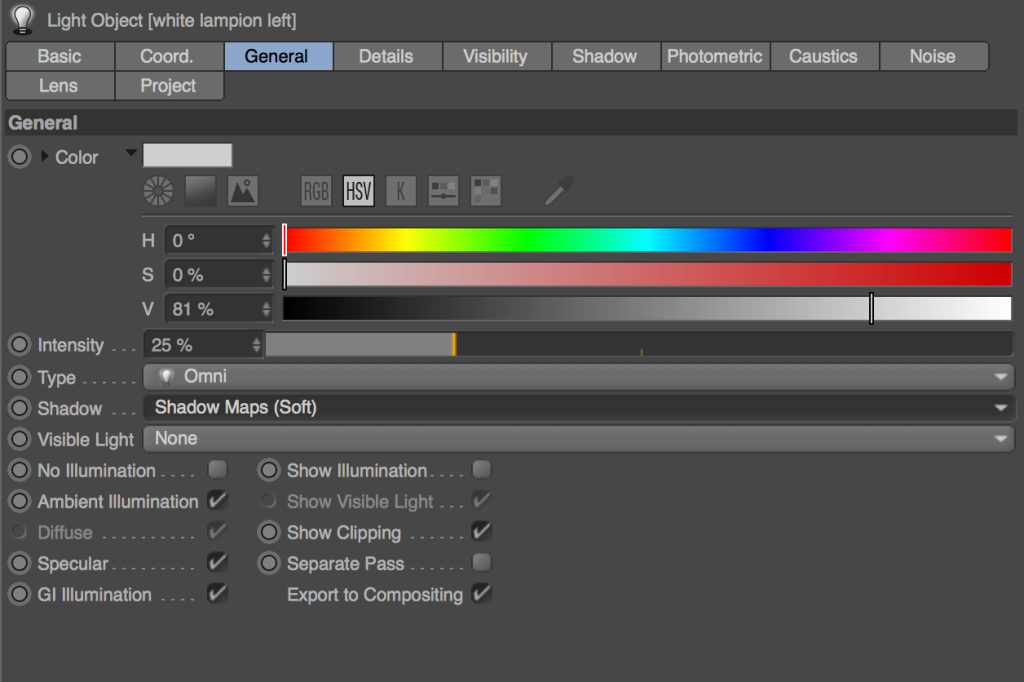

Screenshot 2016-02-25 22.41.52

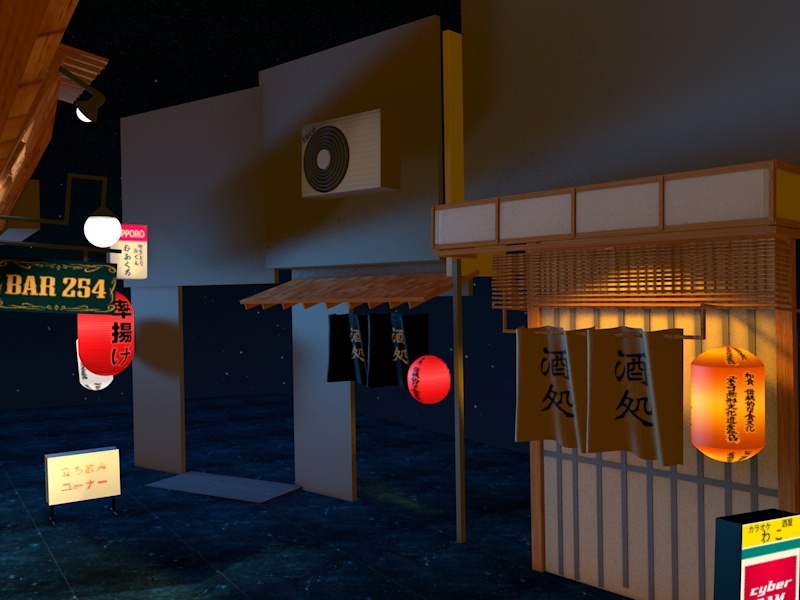

I didn’t really had to set anything else, it immediately looked pretty good. You don’t see shadows in your viewer, you have to render your scene to see it first:

day-25-render

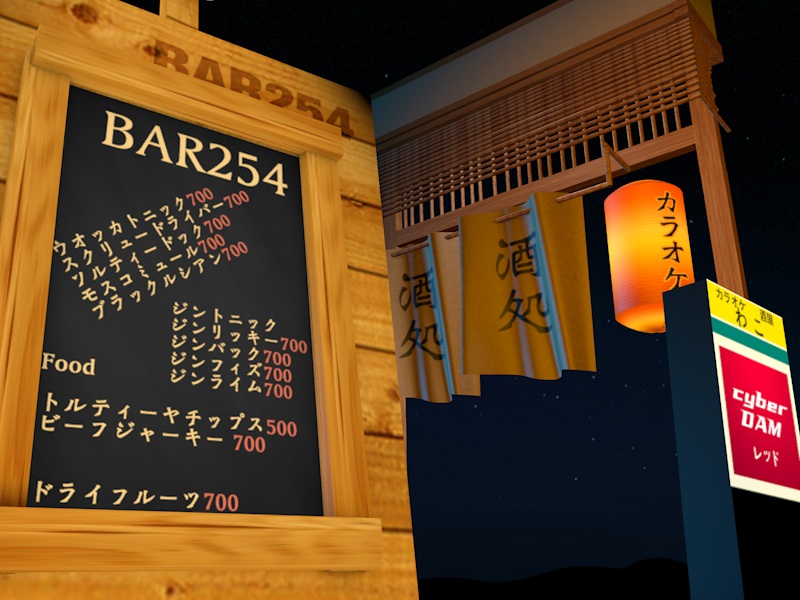

One place where the shadows turned out especially well was the wooden sign in front. Here’s how it looked yesterday:

day-24-sign w sky close

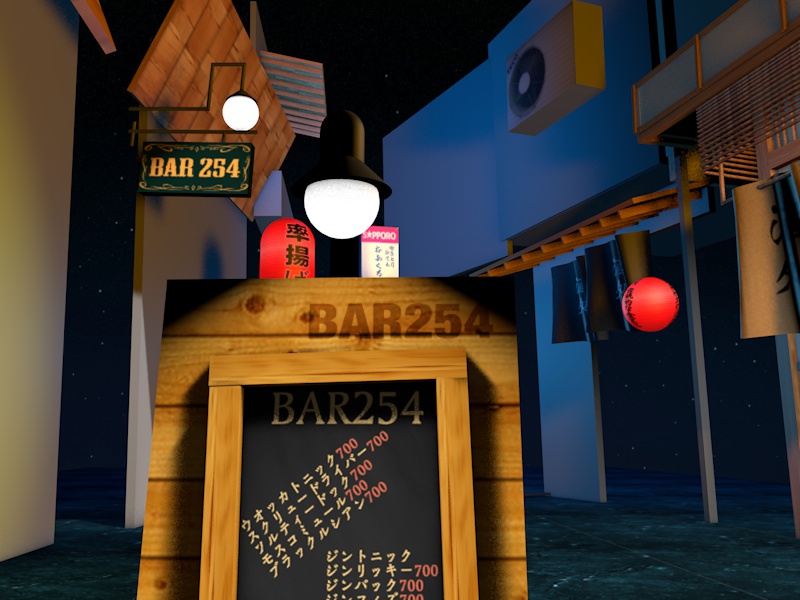

And now with shadows:

day-25-shadows

That’s all shadow, not the texture. And it looks eerily close to the real photo:

Untitled-1

Adding more stuff

The thing I’d been dreading finally had to happen. I had to start adding more detail again by modeling more objects of the scene.

3d wood-carved text

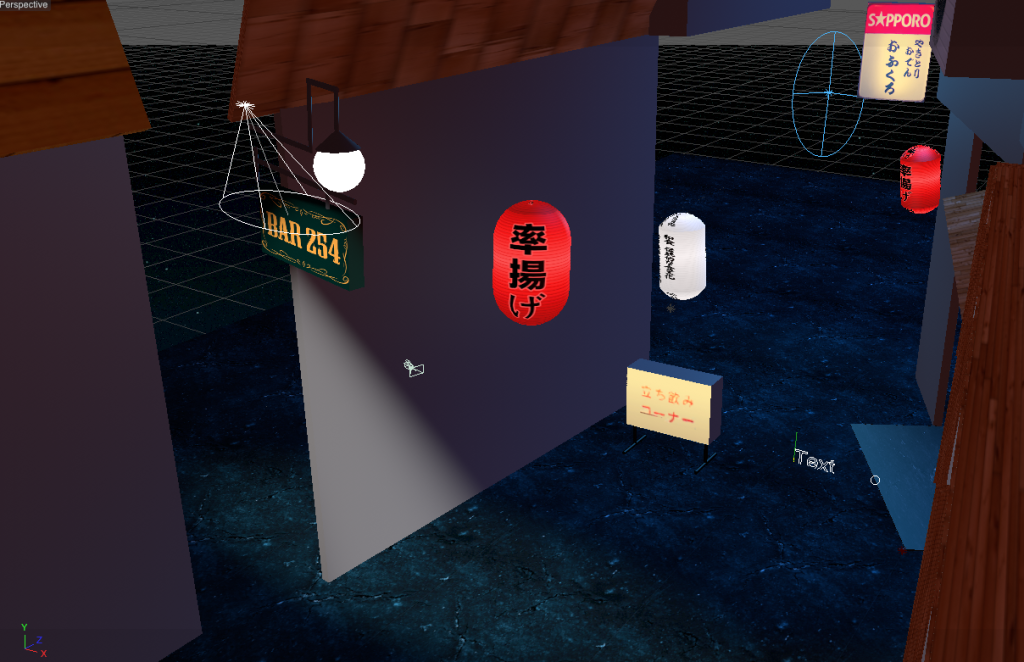

I also added 3d wood carved letters on the bar front sign. You simply add a Text path:

Screenshot 2016-02-25 19.30.56

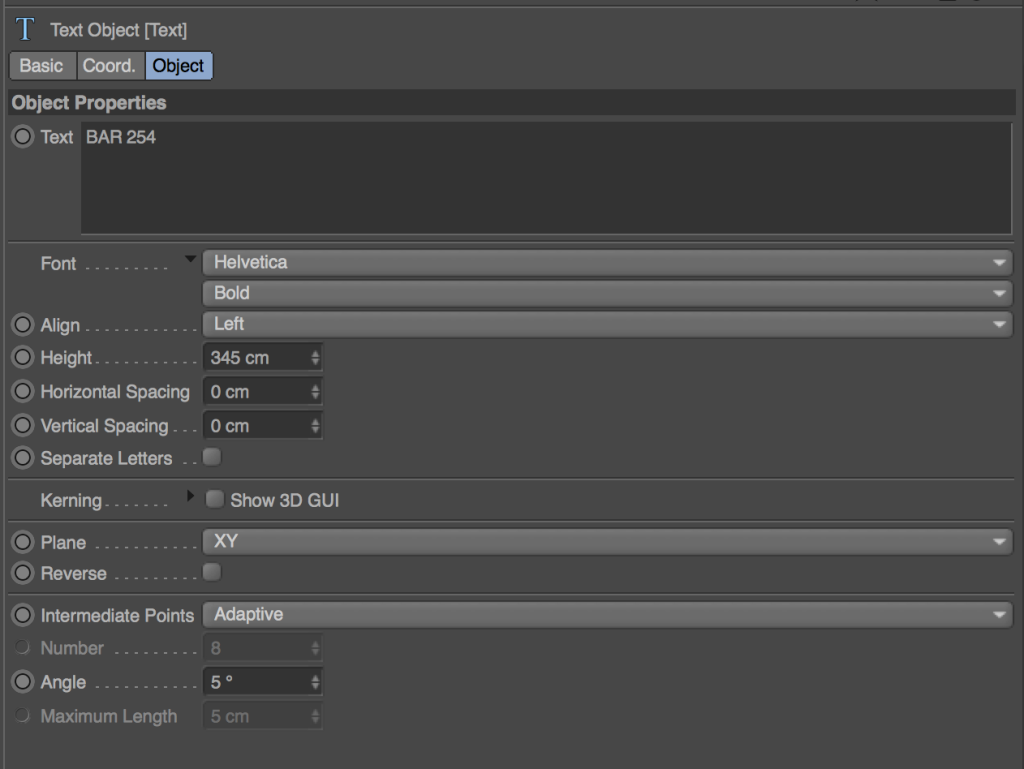

You customize it:

Screenshot 2016-02-25 19.35.27

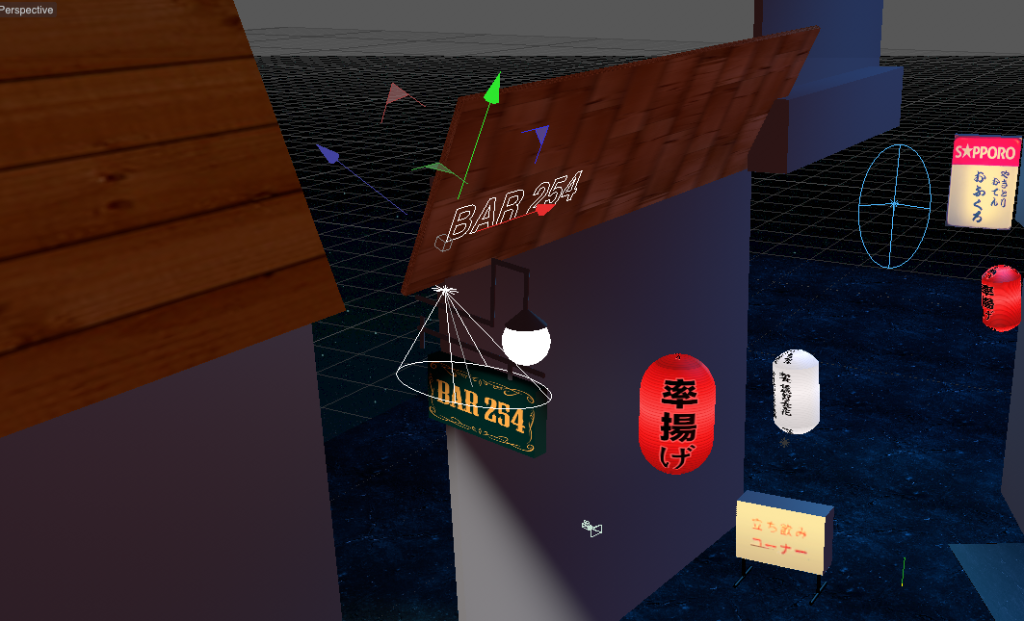

Then you drag it in place:

Screenshot 2016-02-25 19.34.04

And you use a Loft array group layer again to make it 3d. Just like I did when making the curtains. It connects two paths:

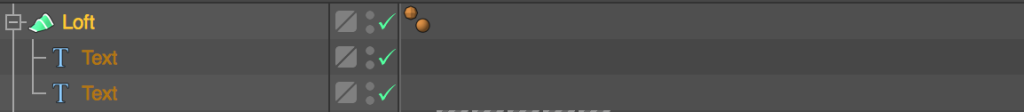

Screenshot 2016-02-25 19.35.22

And it looks like this:

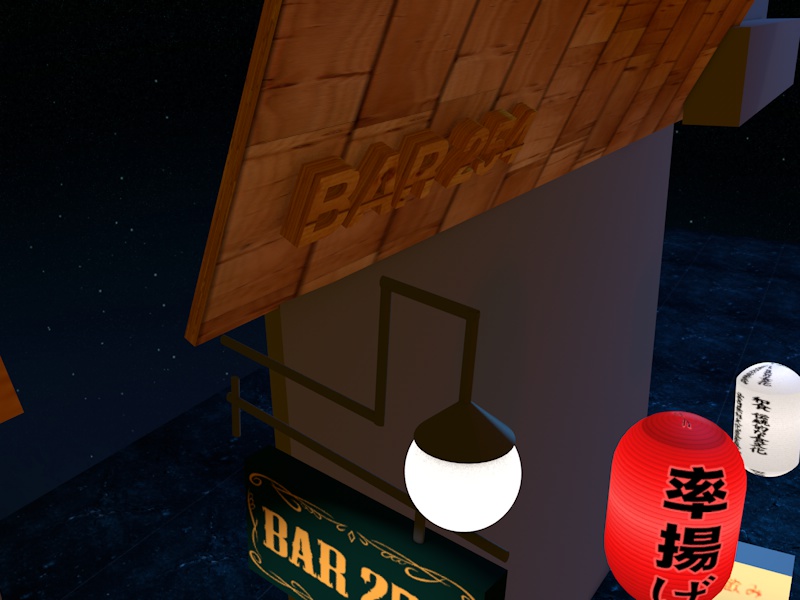

day-25-bar254-wood-carve

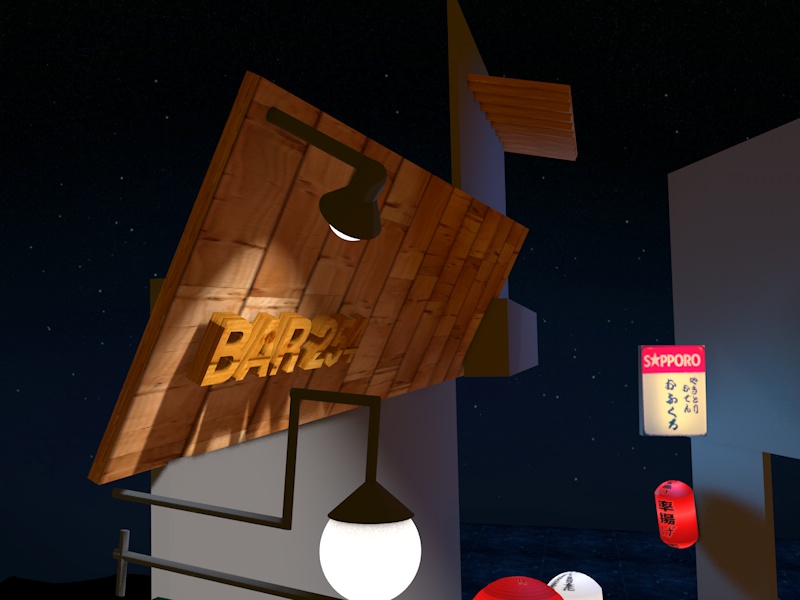

Then I put a light above it:

day-25-bar254-wood-carve-2-light

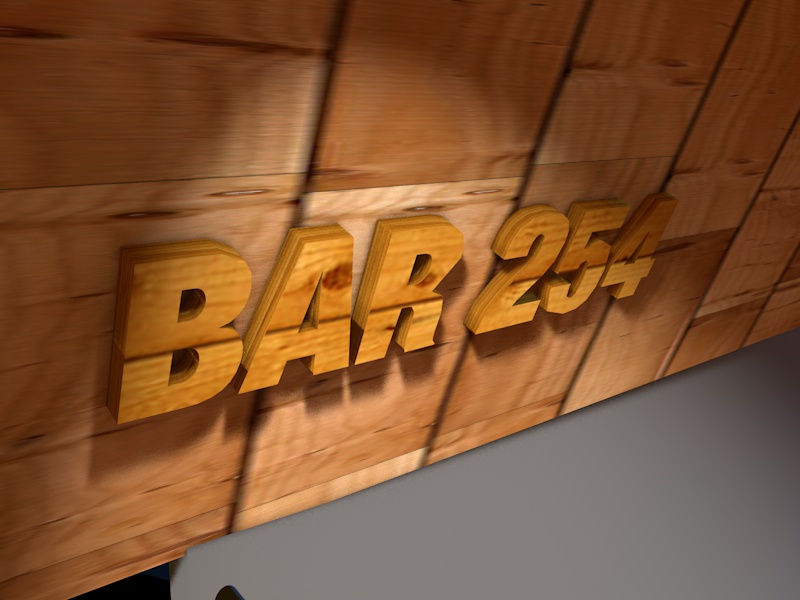

day-25-bar-254-wood-carve-thinner

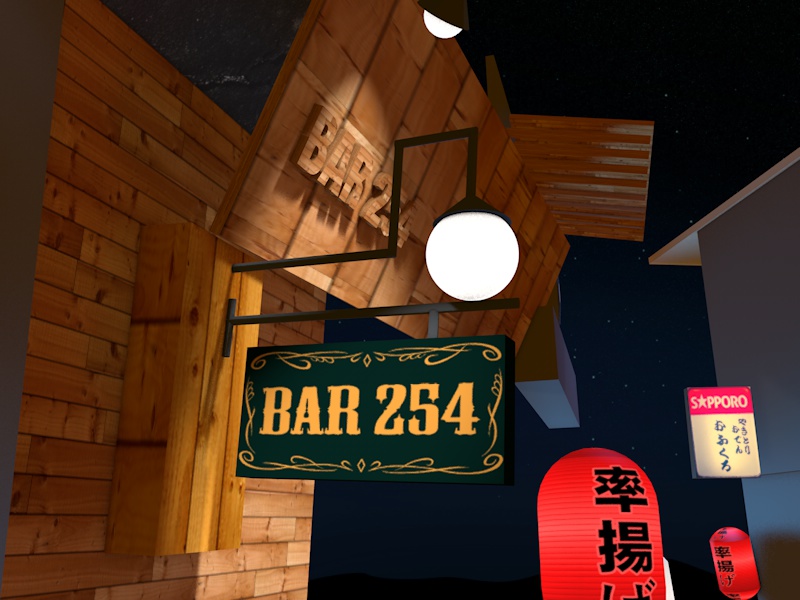

It’s so much easier than it looks. Like literally, it feels like the physical renderer does most of the hard work and it’s default settings work great!

day-25-x1

Aircon

I built an aircon unit by extruding a tube shape from a box shape using a Boole NURBS. That’s a functional array group where you can put two objects in and the second object’s shape will be removed (as in boolean, true or false, I guess) from the first object.

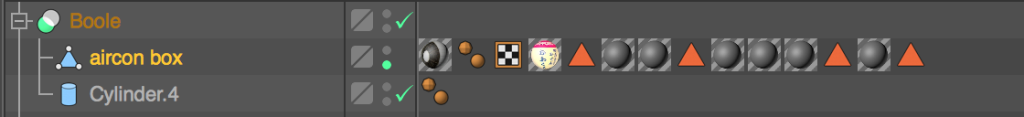

Screenshot 2016-02-25 20.00.24

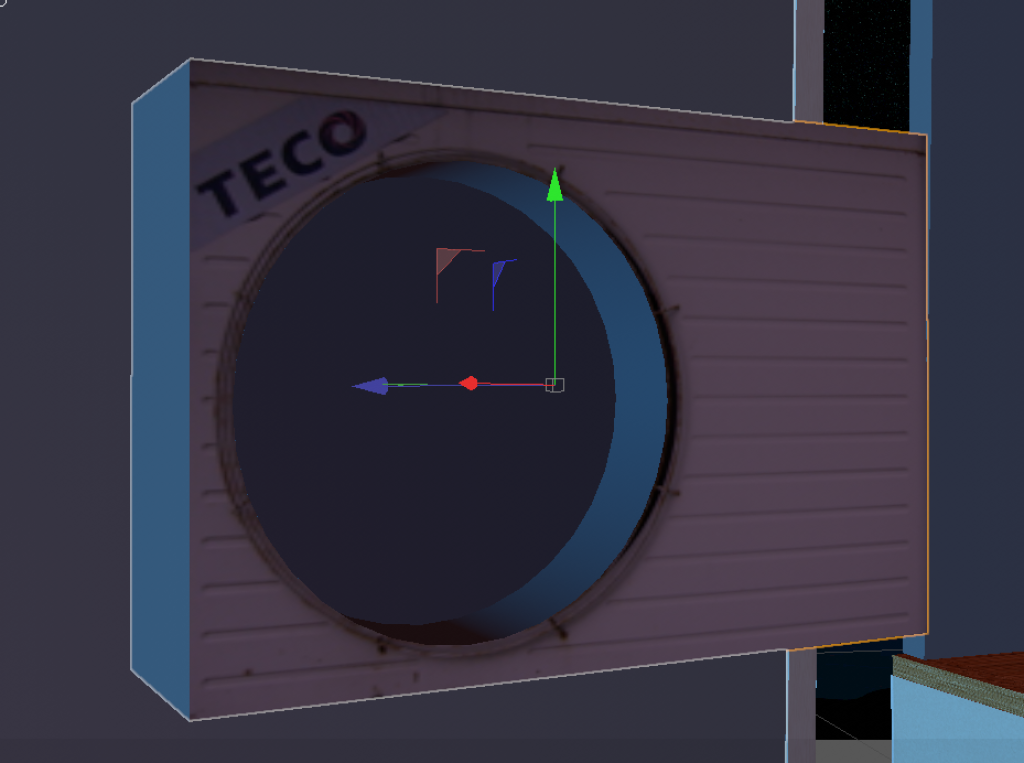

Screenshot 2016-02-25 20.00.17

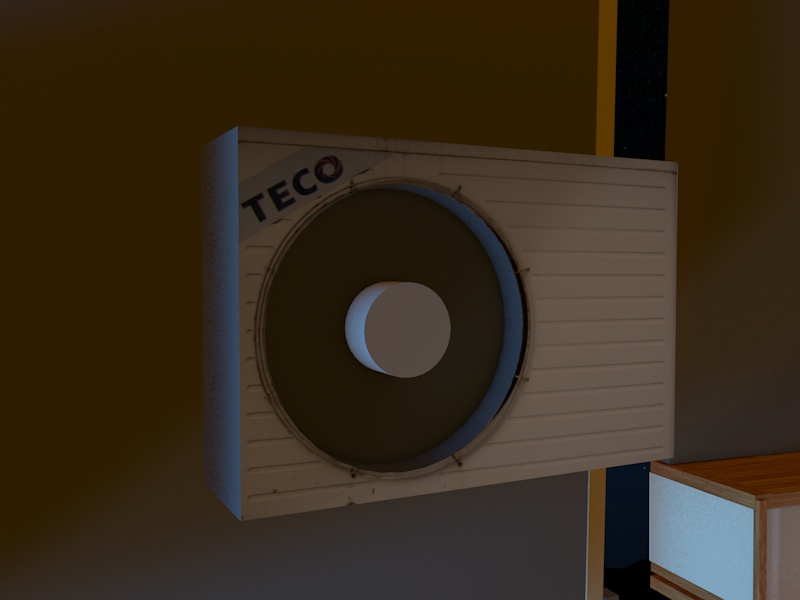

day-25-aircon-boole-nurbs

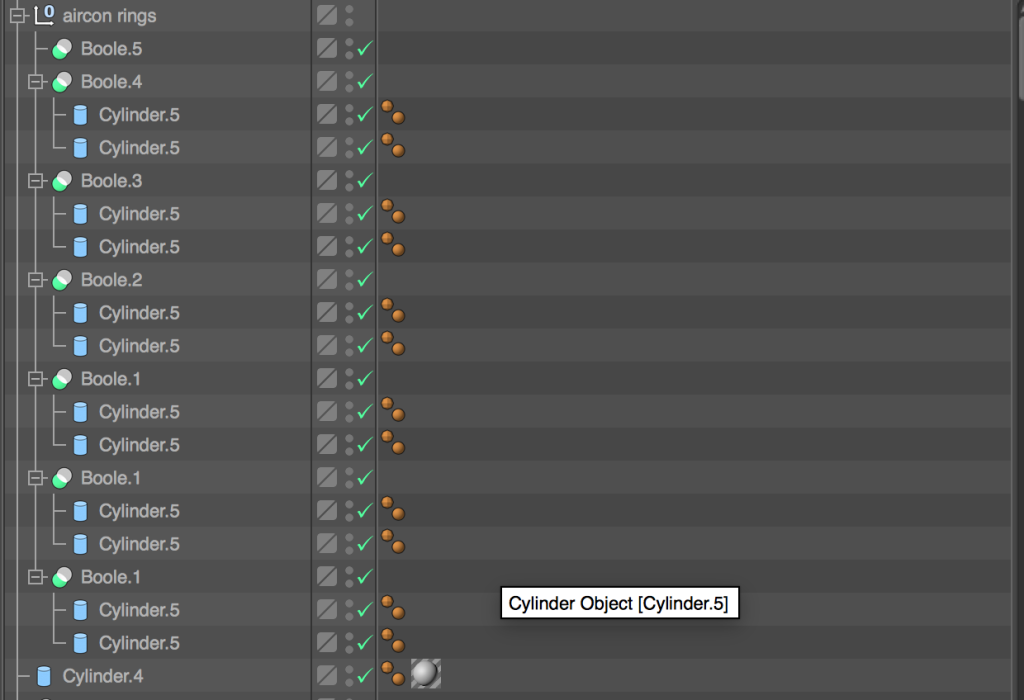

Then I went on to add the aircon circular rings, simply by Boole’ing lots of cylinders in withs smaller cylinders:

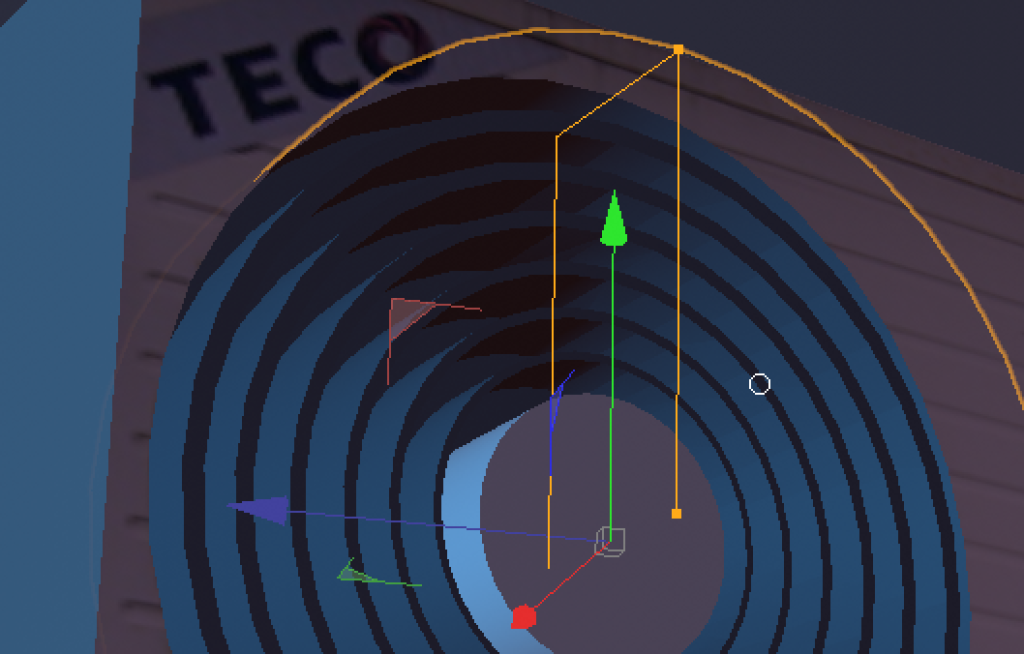

Screenshot 2016-02-25 20.12.26

Screenshot 2016-02-25 20.12.19

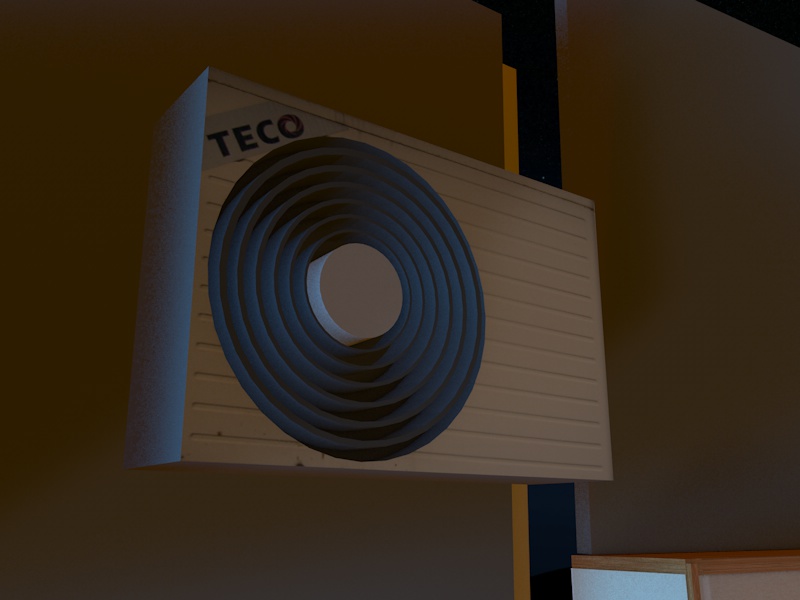

Resulting in:

day-25-aircon-boole-nurbs-rings

More walls, roofs and details

I also added lots of mini walls and roofs, giving everything a better sense of space:

day-25-render

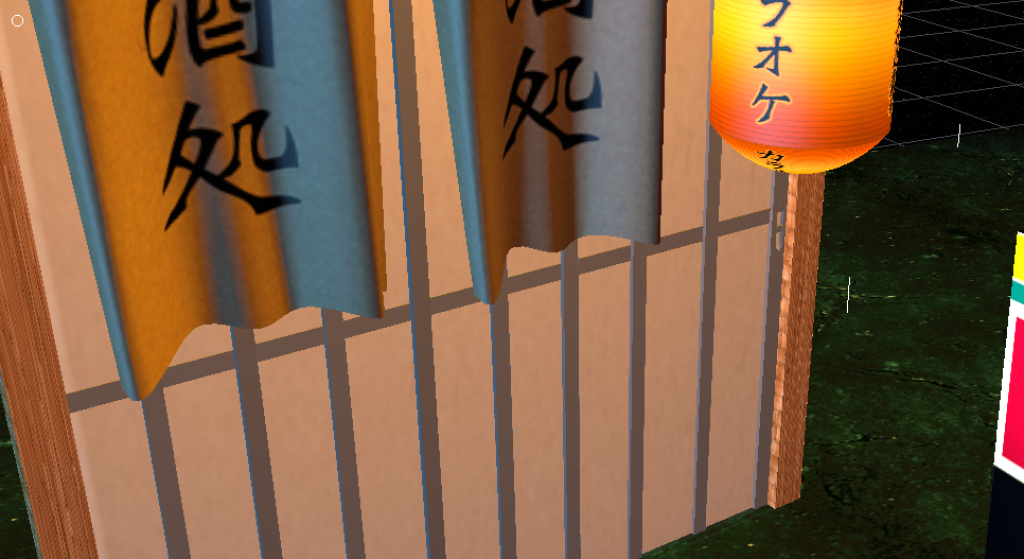

I also added tiny details like the metal bars on the paper door on the right and the finger holes in them:

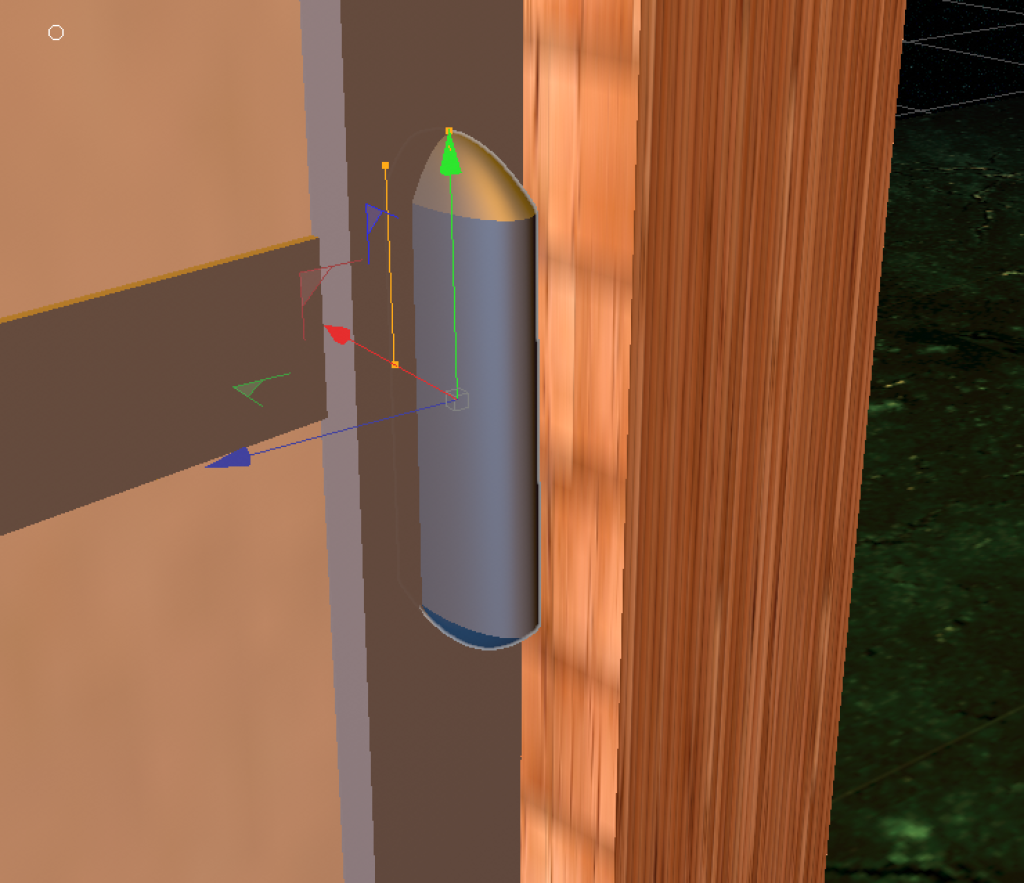

Screenshot 2016-02-25 22.05.27

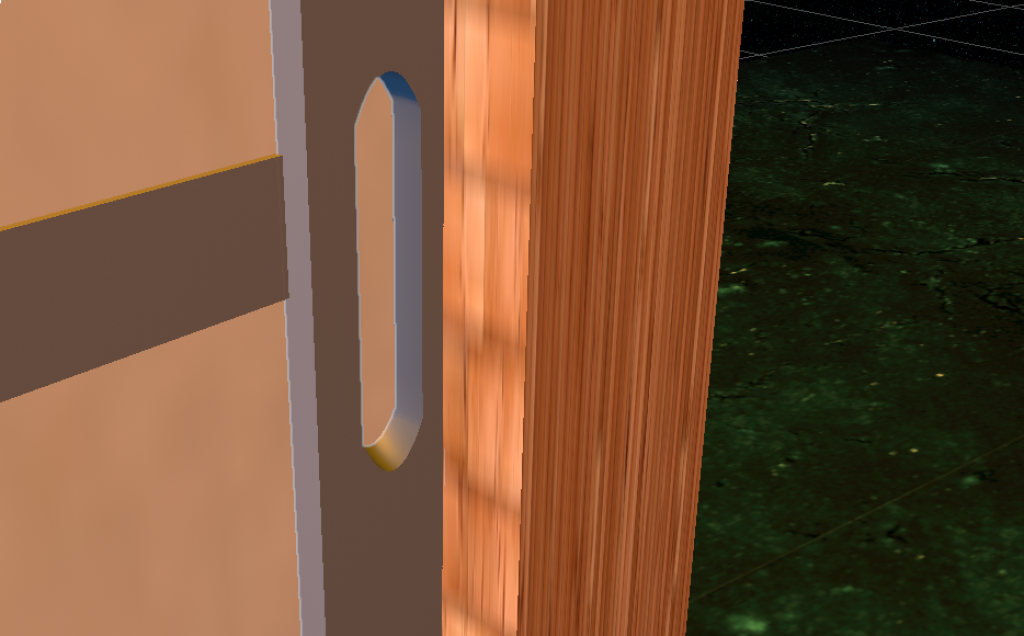

Screenshot 2016-02-25 22.05.58

Screenshot 2016-02-25 22.08.36

Here we are now

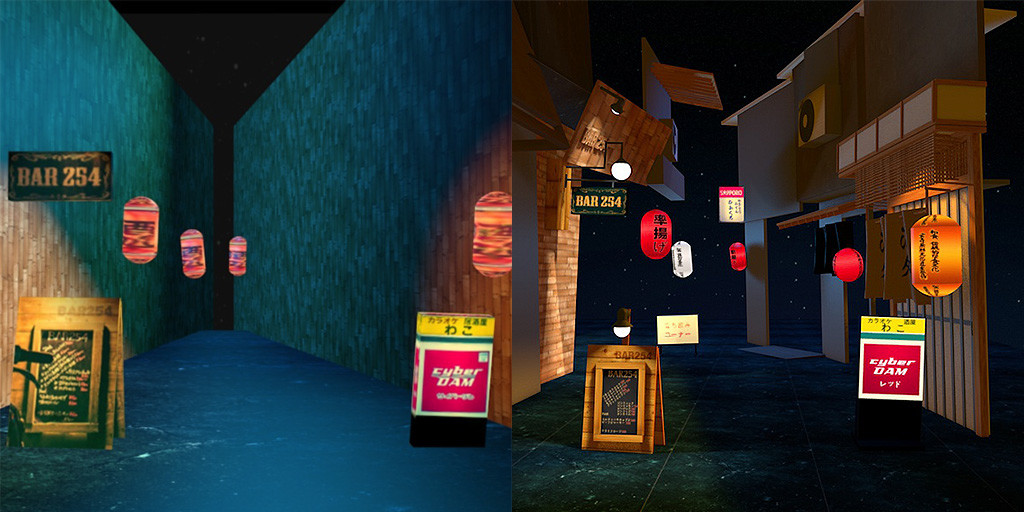

This is day 1 vs. day 25:

day-25-progress

All-in all, we’re getting pretty close now. With the shadows, better lighting and more objects in the street, it’s actually starting to feel a bit cosy.

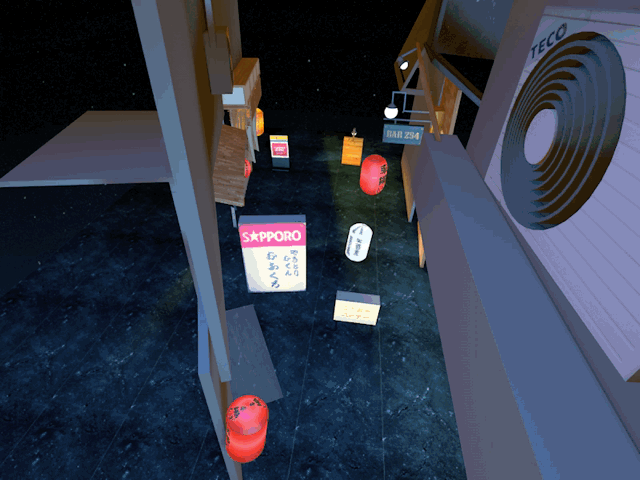

day-25-b

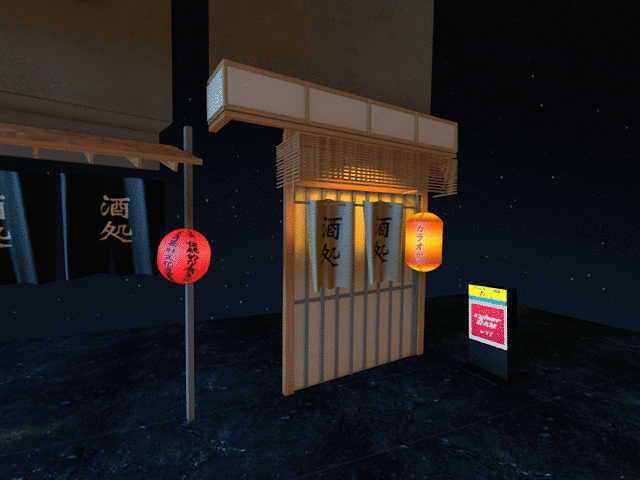

day-25-a

Next is finding more details in the photo and adding them to finish it off.
